LTO-800-031

30,9kWh, 773V

Bus, truck, light commercial vehicle, construction machines, marine and railways applications
ECE R100.3, ECE R10.6 and UN38.3 certifications
IATF 16949:2016-Certified Manufacturing
Common PJB (Pack Junction Box) for all products
Efficient liquid cooling system
CANBus 2.0A-B communication protocol
Integrated BMS (Battery Management System)
Integrated precharge circuit and isolation measurement

Housing 2V34

1990x690x285 mm

Electrical Specifications	Value	Unit
Cell Chemistry	LTO
Installed Energy @1/3C	30,9	kWh
Energy Density @1/3C	up to 56	Wh/kg
Capacity @1/3C	40	Ah
Nominal Voltage	773	V
OCV Range @ 10-90% SoC	712 - 837	V
Min-Max Voltage Range	504 - 908	V
Cont. Charge Current @ 25°C, SoC dependent, step charge	280	A
Peak Charge Current @ 10s, 25°C, SoC dependent	324	A
Cont. Discharge Current @ 25°C, SoC dependent	280	A
Peak Discharge Current @ 10s, 25°C, SoC dependent	324	A
Cycle Life (based on user power profile, DoD and temp.)	> 20000	cycle
Communication Protocol	CANBus 2.0A-B
Supply Voltage for Control Equipment	12/24	V
Mechanical Specifications
Cooling Type	Liquid Cooling
Flow Rate	10-15	l/min
Pressure Drop @10I/min and 25°C	< 300	mbar
Coolant Operating Pressure	< 2	bar
Operating Temperature @discharge	-30 ~ 55	°C
Operating Temperature @charge	-30 ~ 55	°C
Recommended Operating Temperature	15 ~ 35	°C
Storage Temperature	-40 ~ 60	°C
IP Rating (when the plug connectors are mated)	IP67
Physical Specifications
2V34 Housing Type	Weight kg	550
2V34 Housing Type	Dimension mm	1990x690x285

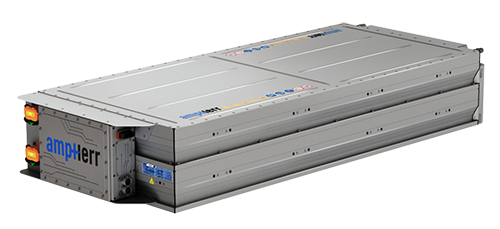

LTO-800-031
Battery Pack

Housing 2V34
Battery Pack


