NMC-800-084

84,2kWh, 707V

Bus, truck, light commercial vehicle, construction machines, marine and railways applications
ECE R100.3, ECE R10.6 and UN38.3 certifications
IATF 16949:2016-Certified Manufacturing
Common PJB (Pack Junction Box) for all products
Efficient liquid cooling system
CANBus 2.0A-B communication protocol
Integrated BMS (Battery Management System)
Integrated precharge circuit and isolation measurement

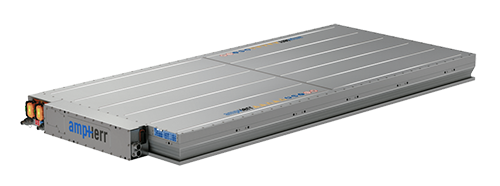

Housing 1F32

2215x1000x145 mm

Housing 2V32

1710x690x285 mm

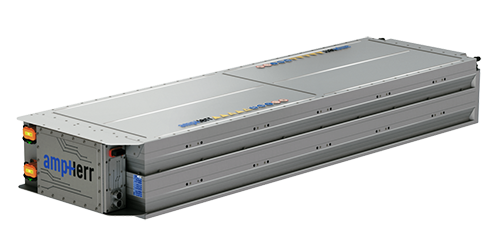

Housing 2H16

2075x600x285 mm

Housing 4V16

960x690x570 mm

Electrical Specifications	Value	Unit
Cell Chemistry	NMC
Installed Energy @1/3C	84,2	kWh
Energy Density @1/3C	up to 176	Wh/kg
Capacity @1/3C	117	Ah
Nominal Voltage	707	V
OCV Range @ 5-95% SoC	668 - 818	V
Min-Max Voltage Range	538 - 845	V
Cont. Charge Current @ 25°C, SoC dependent, step charge	200	A
Peak Charge Current @10s,@ 25°C, SoC dependent	354	A
Cont. Discharge Current @ 25°C, SoC dependent	228	A
Peak Discharge Current @10s, @ 25°C, SoC dependent	354	A
Cycle Life @ 90%DoD, 0.5C/ 0.5C	up to 3000	cycle
Communication Protocol	CANBus 2.0A-B
Supply Voltage for Control Equipment	12/24	V
Mechanical Specifications
Cooling Type	Liquid Cooling
Flow Rate	10-15	l/min
Pressure Drop @10I/min and 25°C	< 300	mbar
Coolant Operating Pressure	< 2	bar
Operating Temperature @discharge	-30 ~ 55	°C
Operating Temperature @charge	-20 ~ 55	°C
Recommended Operating Temperature	15 ~ 35	°C
Storage Temperature	-20 ~ 45	°C
IP Rating (when the plug connectors are mated)	IP67
Physical Specifications
1F32 Housing Type	Weight kg	490
1F32 Housing Type	Dimension mm	2215x1000x145
2H16 Housing Type	Weight kg	520
2H16 Housing Type	Dimension mm	2075x600x285
2V32 Housing Type	Weight kg	510
2V32 Housing Type	Dimension mm	1710x690x285
4V16 Housing Type	Weight kg	530
4V16 Housing Type	Dimension mm	960x690x570
