NMC-400-063

63,4kWh, 351V

Bus, truck, light commercial vehicle, construction machines, marine and railways applications
ECE R100.3, ECE R10.6 and UN38.3 certifications
IATF 16949:2016-Certified Manufacturing
Common PJB (Pack Junction Box) for all products
Efficient liquid cooling system
CANBus 2.0A-B communication protocol
Integrated BMS (Battery Management System)
Integrated precharge circuit and isolation measurement

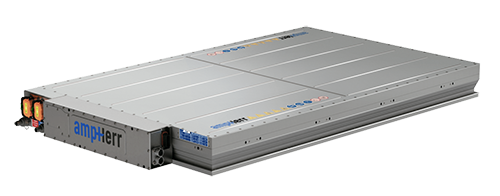

Housing 1F24

1660x1000x145 mm

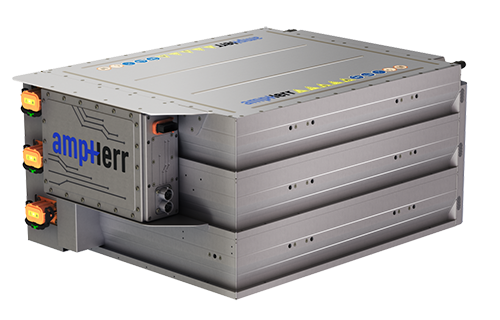

Housing 3V16

960x690x428 mm

Housing 2V24

1330x690x285 mm

Electrical Specifications	Value	Unit
Cell Chemistry	NMC
Installed Energy @1/3C	63,4	kWh
Energy Density @1/3C	up to 174	Wh/kg
Capacity @1/3C	177	Ah
Nominal Voltage	351	V
OCV Range @ 5-95% SoC	334 - 406	V
Min-Max Voltage Range	269 - 418	V
Cont. Charge Current @ 25°C, SoC dependent, step charge	209	A
Peak Charge Current @ 10s, 25°C, SoC dependent	348	A
Cont. Discharge Current @ 25°C, SoC dependent	174	A
Peak Discharge Current @ 10s, 25°C, SoC dependent	500	A
Cycle Life @ 90%DoD, 0.5C/ 0.5C	up to 4000	cycle
Communication Protocol	CANBus 2.0A-B
Supply Voltage for Control Equipment	12/24	V
Mechanical Specifications
Cooling Type	Liquid Cooling
Flow Rate	10-15	l/min
Pressure Drop @10I/min and 25°C	< 300	mbar
Coolant Operating Pressure	< 2	bar
Operating Temperature @discharge	-30 ~ 55	°C
Operating Temperature @charge	-20 ~ 55	°C
Recommended Operating Temperature	15 ~ 35	°C
Storage Temperature	-30 ~ 55	°C
IP Rating (when the plug connectors are mated)	IP67
Physical Specifications
1F24 Housing Type	Weight kg	370
1F24 Housing Type	Dimensions mm	1660x1000x145
2V24 Housing Type	Weight kg	390
2V24 Housing Type	Dimensions mm	1330x690x285
3V16 Housing Type	Weight kg	400
3V16 Housing Type	Dimensions mm	960x690x428
