LFP-400-052

51,8kWh, 384V

Bus, truck, light commercial vehicle, construction machines, marine and railways applications
ECE R100.3, ECE R10.6 and UN38.3 certifications
IATF 16949:2016-Certified Manufacturing
Common PJB (Pack Junction Box) for all products
Efficient liquid cooling system
CANBus 2.0A-B communication protocol
Integrated BMS (Battery Management System)
Integrated precharge circuit and isolation measurement

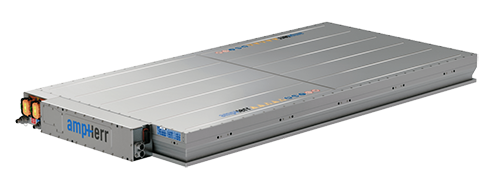

Housing 1F30

2050x1000x145 mm

Housing 2V32

1710x690x285 mm

Housing 2H16

2075x600x285 mm

Housing 4V16

960x690x570 mm

Electrical Specifications	Value	Unit
Cell Chemistry	LFP
Installed Energy @1/3C	52,2	kWh
Energy Density @1/3C	up to 117	Wh/kg
Capacity @1/3C	135	Ah
Nominal Voltage	384	V
OCV Range @ 5-95% SoC	357 - 425	V
Min-Max Voltage Range	300 - 438	V
Cont. Charge Current @ 25°C, SoC dependent, step charge	135	A
Peak Charge Current @ 10s, 25°C, SoC dependent	270	A
Cont. Discharge Current @ 25°C, SoC dependent	135	A
Peak Discharge Current @ 10s, 25°C, SoC dependent	473	A
Cycle Life @ 90%DoD, 0.5C/ 0.5C	up to 4000	cycle
Communication Protocol	CANBus 2.0A-B
Supply Voltage for Control Equipment	12/24	V
Mechanical Specifications
Cooling Type	Liquid Cooling
Flow Rate	10-15	l/min
Pressure Drop @10I/min and 25°C	< 300	mbar
Coolant Operating Pressure	< 2	bar
Operating Temperature @discharge	-30 ~ 55	°C
Operating Temperature @charge	0 ~ 55	°C
Recommended Operating Temperature	15 ~ 35	°C
Storage Temperature	-20 ~ 55	°C
IP Rating (when the plug connectors are mated)	IP67
Physical Specifications
1F30 Housing Type	Weight kg	460
1F30 Housing Type	Dimension mm	2050x1000x145
2H16 Housing Type	Weight kg	490
2H16 Housing Type	Dimension mm	2075x600x285
2V32 Housing Type	Weight kg	480
2V32 Housing Type	Dimension mm	1710x690x285
4V16 Housing Type	Weight kg	500
4V16 Housing Type	Dimension mm	960x690x570
