AMPHERR IS THE NEW DEFINITION OF CURRENT IN THE WORLD OF ELECTROMOBILITY. WITH OUR NEW PRODUCT LINEUP, YOU WILL FIND THE BEST FIT FOR EVERY USE CASE AND OUR STANDARD BATTERY PACKS, YOU CAN HAVE A MATCHING SOLUTION WITHIN AS SHORT AS 8 WEEKS.
ACCESORIES
SUPPORTED VEHICLES
citybus
trucks
industral
marine
locomotive

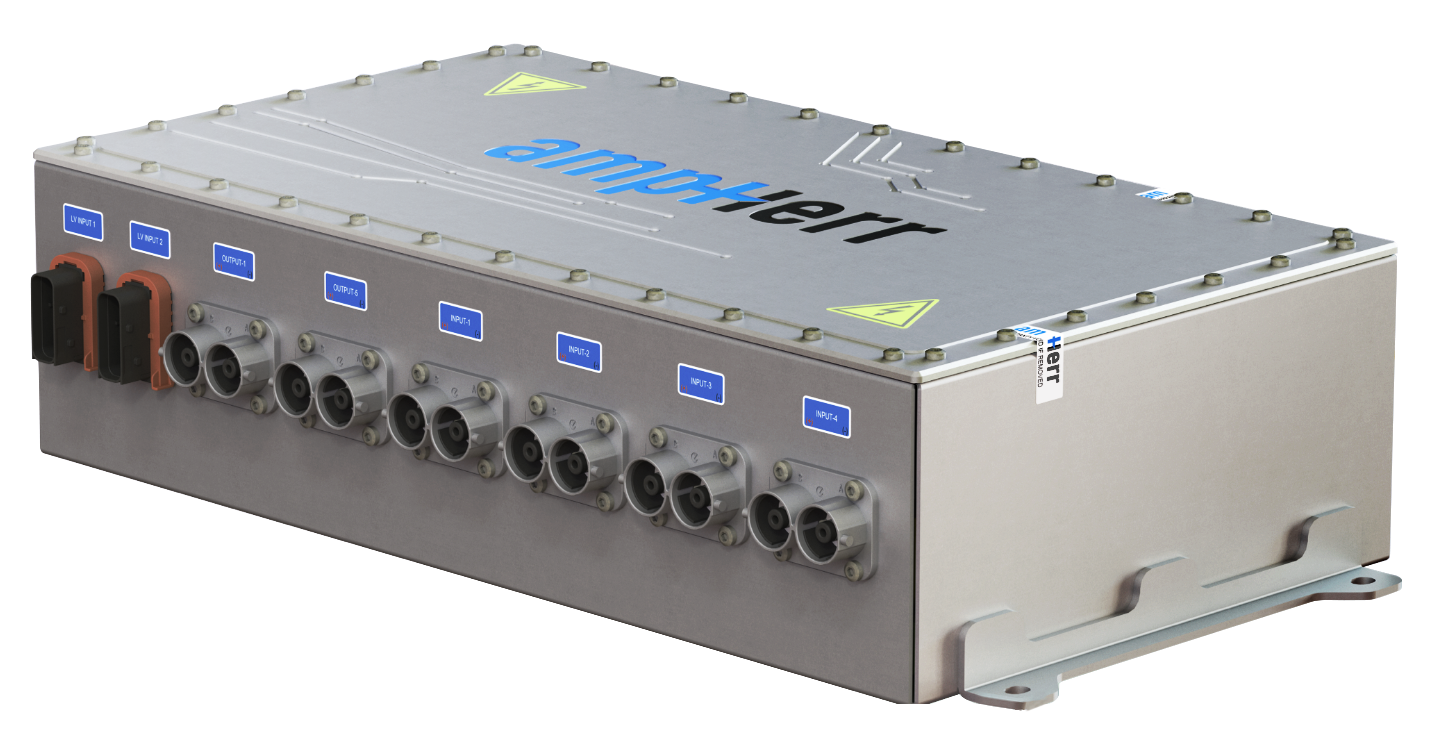

BATTERY PACK SPECIFICATIONS
| SYSTEM SPECIFICATIONS | VALUE | UNIT |
| Voltage Range | up to 1000 | V |
| Maximum Current Per Connector | 350 | A |
| Supported Continuous Discharge Power | up to 600 | kW |
| Supported Number of Packs in Parallel | up to 5 | kWh |
| Supported Number of Packs in Series | up to 4 | A |
| Supported Energy (Battery System) | up to 635 | A |
| DCFC (DC Fast Charge) Input Current | up to 300 | A |
| AC Charge Input Current | up to 100 | A |
| MCU-1 (Motor Control Unit) Output Current | up to 350 | A |
| MCU-2 (Motor Control Unit) Output Current | up to 350 | A |
| Fuel Cell Port Input Current | up to 300 | A |
| DC-DC Converter Output Current | up to 60 | A |
| HVAC (Air Conditioning) Output Current | up to 60 | A |
| Chiller Output Current | up to 60 | A |
| Heater Output Current | up to 60 | A |
| Auxiliary 1 Output Current | up to 60 | V |
| Auxiliary 2 Output Current | up to 60 | A |
| *All connections may be used for other types of devices. | ||
| Communication Protocol | CANBus 2.0A-B, SAE J1939 | |
| Ingress Protection with Mated Plugs | IP67 | |
| Supply Voltage | 12 / 24 | V |
| Dimensions (with mated plugs and mounting brackets) | 680x590x160 | mm |
| Dimensions (from panel connectors and without mounting brackets) | 610x410x160 | mm |
| Weight | 30 | kg |
SYSTEM FEATURES
- System connection of up to 5 battery packs
- Scalable and robust structure
- Integrated MPCU (Multi-Pack Control Unit) for parallel structure
- Hands-off control of all battery packs, including precharge and fault isolation
- Limp-home mode in entire voltage range
- CANBus 2.0A-B and SAE J1939 communication protocol
- Integrated current, voltage and isolation equipment (optional)
- High-Voltage Interlock (HVIL)
DOWNLOADS DOCUMENT
- Brochure (PDF)
SUPPORTED EVs
LIGHT COMMERCIALS
citybusES
locomotive
CONTANIER
marine
industral
trucks
trACTOR
BATTERY PACK LAYOUT
MULTIPLE BATTERY SYSTEM
